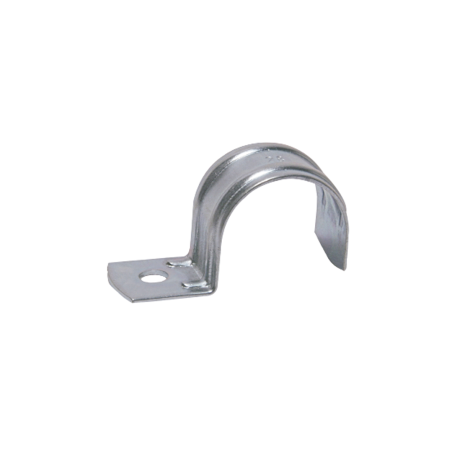

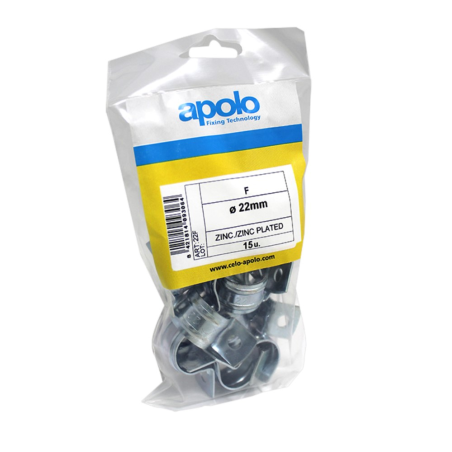

Plastic bag one hole pipe strap clip F

Plastic bag one hole pipe strap F clip
Plastic bag one hole pipe strap clip F
Plastic bag one hole pipe strap clip F
Product overview
Metal clip has a double rib that it arrives till to the clip angle, offering greater resistance to bending.
Download documents
List of references
Filters
Height [mm]
17.6
19.6
21.9
23.9
26.9
29.9
34.3
42.3
Close
Suitable for
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 35-42
Close
Width [mm]
15
18
20
Close
Sheet thickness [mm]
1
1.2
1.5
Close
Reference
d
J
16F
18F
20F
22F
25F
28F
32F
40F
Diameter [mm]
d
J
16
18
20
22
25
28
32
40
Length [mm]
d
J
33.5
35.5
38.7
40.7
43.7
46.7
53.5
61.5
Height [mm]
d
J
17.6
19.6
21.9
23.9
26.9
29.9
34.3
42.3
Suitable for
d
J
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 15-25
Pipe Ø 26-32
Pipe Ø 26-32
Pipe Ø 35-42
Width [mm]
d
J
15
15
18
15
18
18
20
20
Material
d
J
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Sheet thickness [mm]
d
J
1
1
1.2
1.2
1.2
1.2
1.5
1.5
Packaging units
d
J
20
20
20
15
15
15
15
6
Packaging type.
d
J
Bag
Bag
Bag
Bag
Bag
Bag
Bag
Bag
A
t
8 / 8 references
Applications
  • PVC pipes
  • Multilayer pipes
  • Flexible and rigid plastic insulating pipes
  • Steel pipes
  • Plastic pipes
  • Alarm cable
  • Telecommunications cable
  • Signal cable
  • Cable installation
