ResiTHERM® Overview - Which product to choose?

ResiTHERM® is your range for distance mounting on the insulated façade!

How to choose the right product to bridge the insulation and anchor heavy loads like canopies, awnings, air conditioners or French balconies on the wall without causing thermal bridges.

Content:
1. For concrete, aerated concrete and solid brick
2. For hollow brick
3. Technical values / selection guide
4. Downloads

1. For insulated façades made of concrete, aerated concrete and solid brick

Example: concrete, styrofoam, plaster
Example: Aerated concrete, rock mineral wool, plaster
Example: solid brick, wood fibreboard, plaster
Example: concrete, styrofoam, plaster
Example: Aerated concrete, rock mineral wool, plaster
Example: solid brick, wood fibreboard, plaster

Recommendation:
Distance mounting systems ResiTHERM® 16 & ResiTHERM® 12

  • Self-sealing
  • Driving rain-tight up to wind force 11 Beaufort (hurricane-force winds)
  • ETA-approved for concrete, aerated concrete and solid brick
  • German Design Award 2023 for excellent product design
Get free quote

Choose the right product for you:

ResiTHERM® 16

Safely bridges insulation thicknesses
from 60 to 300 mm on concrete,
from 60 to 280 mm on aerated concrete and solid brick
*also suitable for perforated bricks (see technical details)

Choose ResiTHERM® 16 ...

  • If you need a universally applicable quality product with extremely high shear loads
View product

ResiTHERM® 12

Safely bridges insulation thicknesses
from 60 to 220 mm on concrete
from 60 to 190 mm on aerated concrete and solid brick
*also suitable for perforated bricks (see technical details)

Choose ResiTHERM® 12 ...

  • If you are looking for a more cost-effective solution while maintaining highest quality
View product

More info? Everything you need to know about ResiTHERM® 16 & 12 in this article:
Advantages, components of the products, installation steps, more about the approval, contents of the sets and accessories.

2. For insulated façades made of hollow brick

Example: hollow brick, styrofoam, plaster
Example: perforated brick, mineral wool, plaster
Example: brick with chambers, styrodur, plaster
Example: hollow brick, styrofoam, plaster
Example: perforated brick, mineral wool, plaster
Example: brick with chambers, styrodur, plaster

Recommendation:
Distance mounting system ResiTHERM® 37

  • For highest load values in hollow brick
  • ETA-approved for hollow brick and aerated concrete
Get free quote

Select ResiTHERM® 37 depending on the insulation thickness:

ResiTHERM® 37 / 200

For insulation thicknesses 160 - 200 mm
*for load values, see technical details

View product

ResiTHERM® 37 / 160

For insulation thicknesses 120 - 160 mm
*for load values, see technical details

View product

ResiTHERM® 37 / 120

For insulation thicknesses 60 - 120 mm
*for load values, see technical details

View product

3. Technical details / selection guide

Common features of the ResiTHERM® range

Reliable, durable fastening with ETA (European Technical Assessment / Approval)

Effective thermal separation prevents cold bridges

Impervious to driving rain up to wind force 11 (only ResiTHERM® 16 & 12)

Significant time and cost savings due to simple and quick installation

High-quality materials such as A4 stainless steel

Made in Germany
(Aichach, Bavaria)

Reliable, durable fastening with ETA (European Technical Assessment /Approval)

Effective thermal separation prevents cold bridges

Impervious to driving rain up to wind force 11 (only ResiTHERM® 16 & 12)

Significant time and cost savings due to simple and quick installation

High-quality materials such as A4 stainless steel

Made in Germany
(Aichach, Bavaria)

Technical changes in the products and illustrations reserved
Download selection guide

For further details and load values, please refer to the technical data sheet ResiTHERM® 16 & 12:

Data sheet ResiTHERM® 16 & 12

4. Downloads

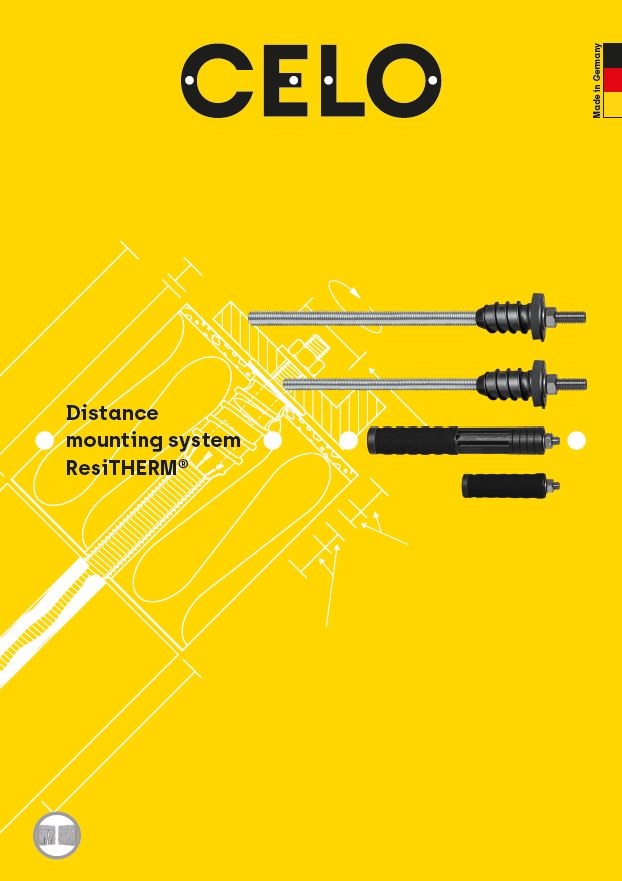

Overview leaflet ResiTHERM® 16, 12 and 37 incl. load values

Download

Do you have any questions about the innovative stand-off installation with ResiTHERM®? Our technical advisory service will be happy to advise you by telephone. We will respond to your enquiries via our contact form as quickly as possible.
