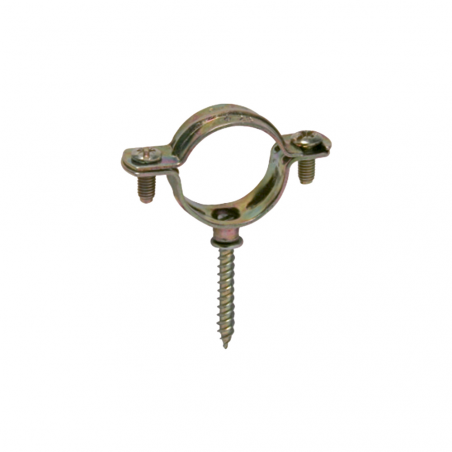

Metal clamp M6 with screw NKS

Metal clamp with screw included
Metal clamp M6 with screw NKS
Metal clamp M6 with screw NKS
Product overview

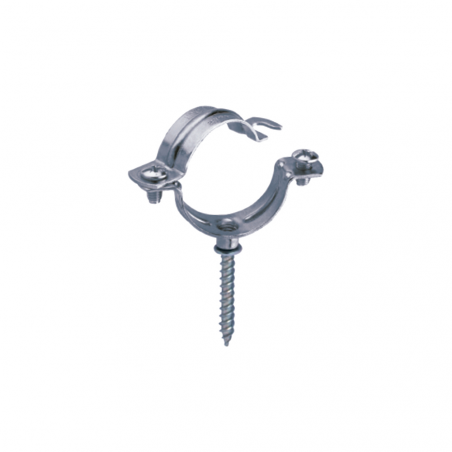

The metal clamp NK M6 with screw, incorporates an opener clip specially designed for easy pre-installation. Not need to close the clamp to prefix the pipe, two internal protrusions on the clamp allow clipping it. The pipe doesn't fall. Also, the clamp base is 10% bigger than the standards for better tube seating.
Download documents
List of references
Filters
Coating
yellow zinc plated
White zinc plated
Close
Suitable for
Pipe Ø 15
Pipe Ø 16
Pipe Ø 18
Pipe Ø 20
Pipe Ø 22
Pipe Ø 25
Pipe Ø 32
Close
Clamp length [mm]
41
42
44
46
48
51
58
Close
Reference
d
J
9B15NKS
916NKS
9B18NKS
920NKS
9B22NKS
925NKS
932NKS
Screw material
d
J
Steel
Steel
Steel
Steel
Steel
Steel
Steel
Coating
d
J
yellow zinc plated
White zinc plated
yellow zinc plated
White zinc plated
yellow zinc plated
White zinc plated
White zinc plated
Suitable for
d
J
Pipe Ø 15
Pipe Ø 16
Pipe Ø 18
Pipe Ø 20
Pipe Ø 22
Pipe Ø 25
Pipe Ø 32
Thread
d
J
M6
M6
M6
M6
M6
M6
M6
Clamp length [mm]
d
J
41
42
44
46
48
51
58
Packaging units
d
J
100
100
50
50
50
50
50
Packaging type.
d
J
Box
Box
Box
Box
Box
Box
Box
A
t
7 / 7 references
Applications
  • Electrical installations
  • General ceiling installations
  • Electrical clamps
  • Heating pipes
  • Water pipeline
Base materials
Suitable materials
Concrete
Concrete
Wood
Wood
