Plug MAS

Nylon plug for direct fixing of electrical applications

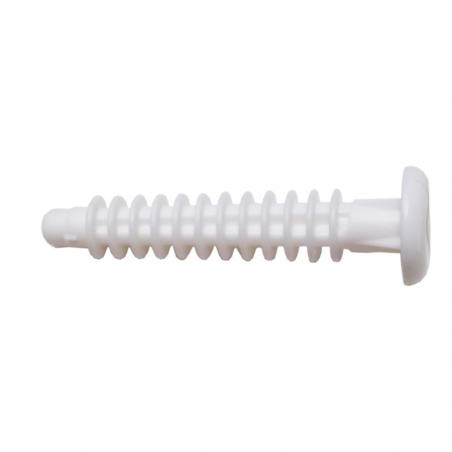

Product image of plug MAS white

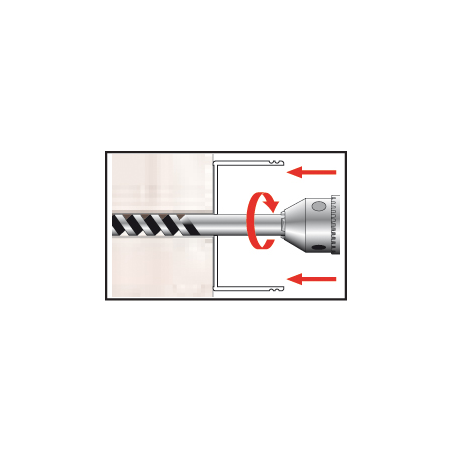

Mounting image MAS 1

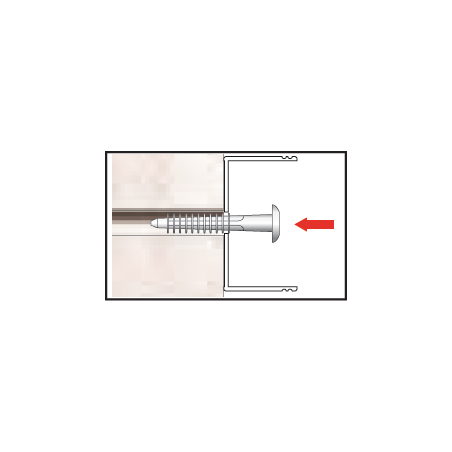

Mounting image MAS 2

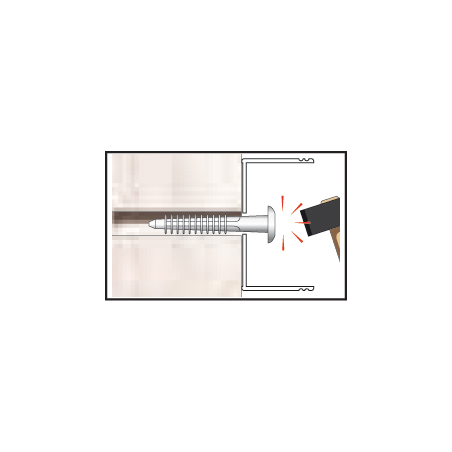

Mounting image MAS 3

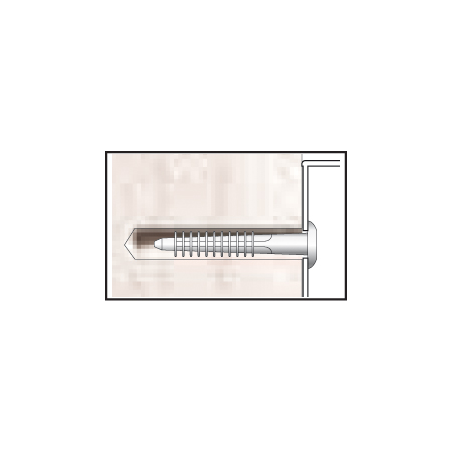

Mounting image MAS 4
Product overview

Nylon plug MAS provides a quick intallation and good hold for electrical applications such as cable channels, ­junction boxes, etc. but also i.e. floor threshold strips.

Show more
Download documents
List of references
Filters
Drill hole diameter [mm]
5
6
Close
Anchorage depth [mm]
25
32
52
Close
Thickness of fixture [mm]
5
8
13
Close
Reference
d
J
91530MAS
91640MAS
91665MAS
Diameter [mm]
d
J
0
6
6
Length [mm]
d
J
0
40
65
Colour
d
J
White
White
White
Drill hole diameter [mm]
d
J
5
6
6
Anchorage depth [mm]
d
J
25
32
52
Thickness of fixture [mm]
d
J
5
8
13
Material
d
J
Nylon
Nylon
Nylon
Packaging units
d
J
200
200
100
Packaging type.
d
J
Box
Box
Box
A
t
3 / 3 references
Applications
  • Cable channels
  • Junction box
  • Threshold strips
Base materials
Suitable materials
Concrete
Concrete
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Lightweight solid concrete block
Lightweight solid concrete block
