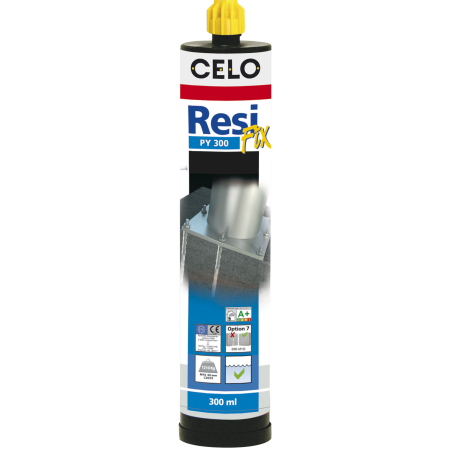

Injection mortar ResiFIX PY

CE approved polyester chemical anchor for concrete
Injection mortar ResiFIX PY

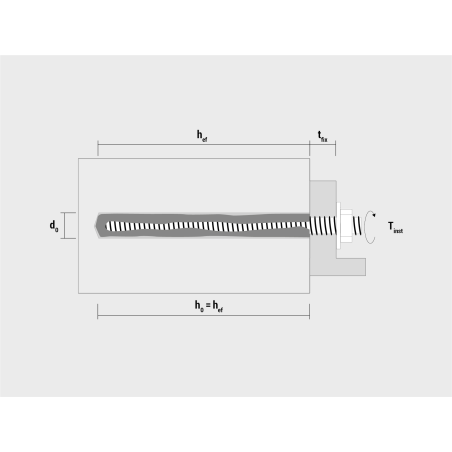

Technical drawing of injection mortar ResiFIX in concrete
Montagebild ResiFIX 1
Mounting image ResiFIX 2
Mounting image ResiFIX 3
Mounting image ResiFIX 4
Mounting image ResiFIX 5
Mounting image ResiFIX 6
Mounting image ResiFIX 7
Mounting image ResiFIX 8
Mounting image ResiFIX 9
Product overview

The injection mortar ResiFIX PY is your ETA- approved solution for heavy-duty applications in non-cracked concrete (Option 7) and masonry (M8-M16) and many other base materials like aerated concrete, lightweight solid or hollow concrete blocks or sand lime bricks. Due to its high chemical resistance ResiFIX PY guarantees high loads and an installation free of expansion forces of e.g. anchor rods, anchor studs, square pipes, bolts and screws.

Show more
Download documents
View videos
List of references
Filters
Content [ml]
300
410
Close
Reference
d
J
300CR
410CR
Content [ml]
d
J
300
410
Material
d
J
Polyester
Polyester
Packaging units
d
J
1
1
Packaging type.
d
J
Box
Box
A
t
2 / 2 references
Applications
  • Steel constructions
  • Machines
  • Guard rails
  • Facade substructures
Base materials
Suitable materials
Concrete
Concrete
Solid stone
Solid stone
How to install

Mounting in concrete and solid brick

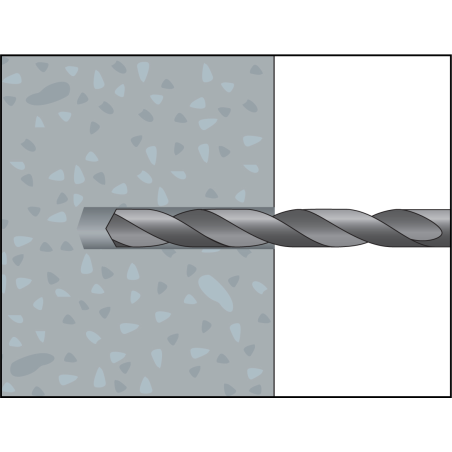

Drilling concrete

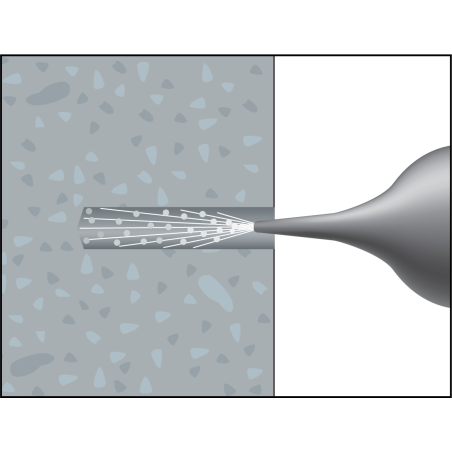

Dusting with blown air

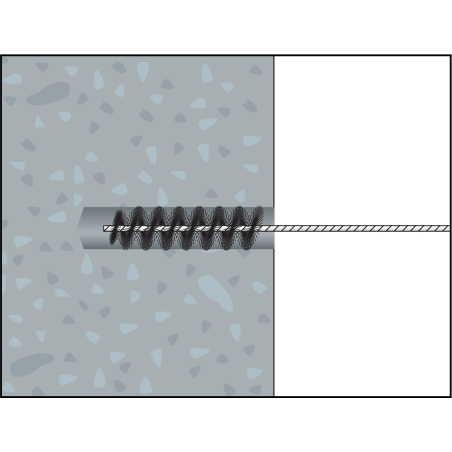

Remove dust with a cleaning brush

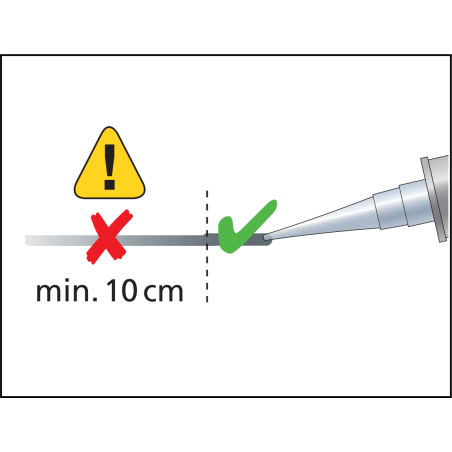

Remove the first 10 centimeters of the product before use

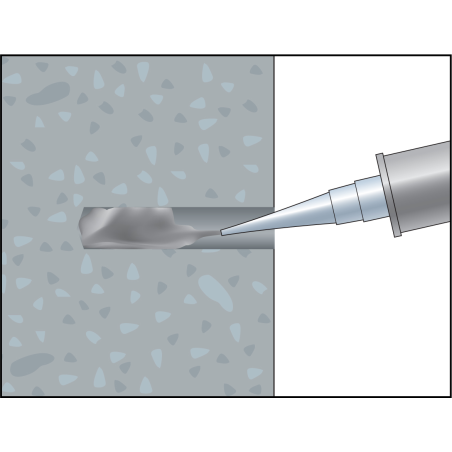

Fill with injection mortar ResiFIX

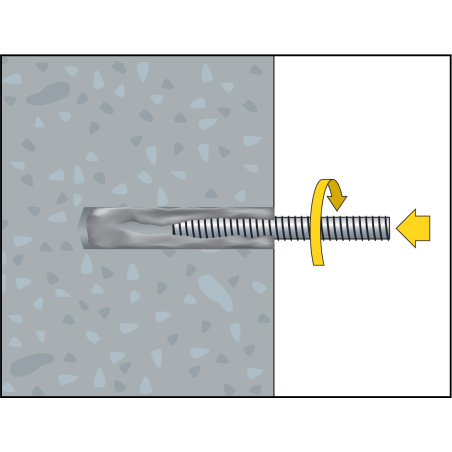

Insert the screw

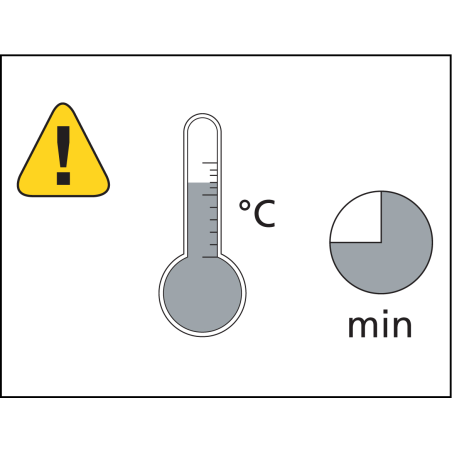

Observe the curing time of the injection system

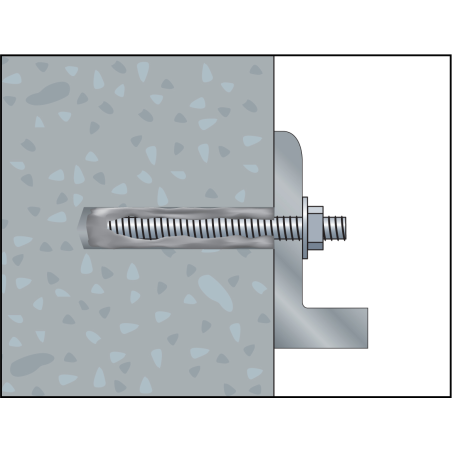

Attachment can be mounted

Mounting in hollow brick

Drill the hollow body
Dusting with blown air
Remove dust with a cleaning brush
Insert a plastic sleeve
Remove the first 10 centimeters of the product before use
Fill with injection mortar ResiFIX
Insert the screw
Observe the curing time of the injection system
Attachment can be mounted
