Quick-assembly beam clamps
How to mount to metal beams using beam clamps
Due to the large spans between the support beams, the construction of steel beams in warehouses or sales halls allows for large open spaces.
Beam clamps are used here. These beam fixings or beam clips (also known as flange beam clips) can be quickly and easily installed on metal beams. In combination with threaded rods, cable ties, ropes, and hooks, CELO's extensive range of beam fasteners offers a quick mounting solution for a wide variety of applications in the electrical and HVAC sectors.
Why use beam clamps
Safe mounting
Our beam clips and clamps enable a secure installation of pipes, cables, support systems and more on steel beams
No drilling or welding
Our fixing solutions for beam flanges do not cause weakening or deformation of the steel beam during installation
Avoid metal splinters and heavy equipment
Our beam fixings are simply hammered onto the flange or fastened with a pre-assembled screw
Functionality of beam clamps
Save time during installation! By simply tightening the screw or hammering it onto the beam flange, installation is possible without drilling or welding. This saves you installation effort and time with CELO beam fixings.
The following installation videos show you how beam clamps for fixing to the beam flange work:
Tighten the beam clamp with a screw
With this method, the beam clamp is tightened with the pre-assembled screw on the beam flange (and secured with a lock nut, depending on the product)
Hammer the beam clamp onto the flange
For this quick fastening method to the steel beam, the stable spring steel beam clamps are simply hammered onto the flange
The complete beam fixings assortment from CELO
Beam clamps can be used for a wide range of applications and combined with threaded rods, but also ropes, hooks, cable ties or clamps. At CELO, you will not only find a complete range of quick beam fixings, but also a comprehensive range of accessories for threaded rods, cable ties and clamps for HVAC or electrical installations.
Thanks to the grey zinc-flake coating, the beam clips and clamps offer high corrosion resistance for indoor, outdoor, humid and corrosive environments - up to 480 hours in the salt spray test (DIN 50021).

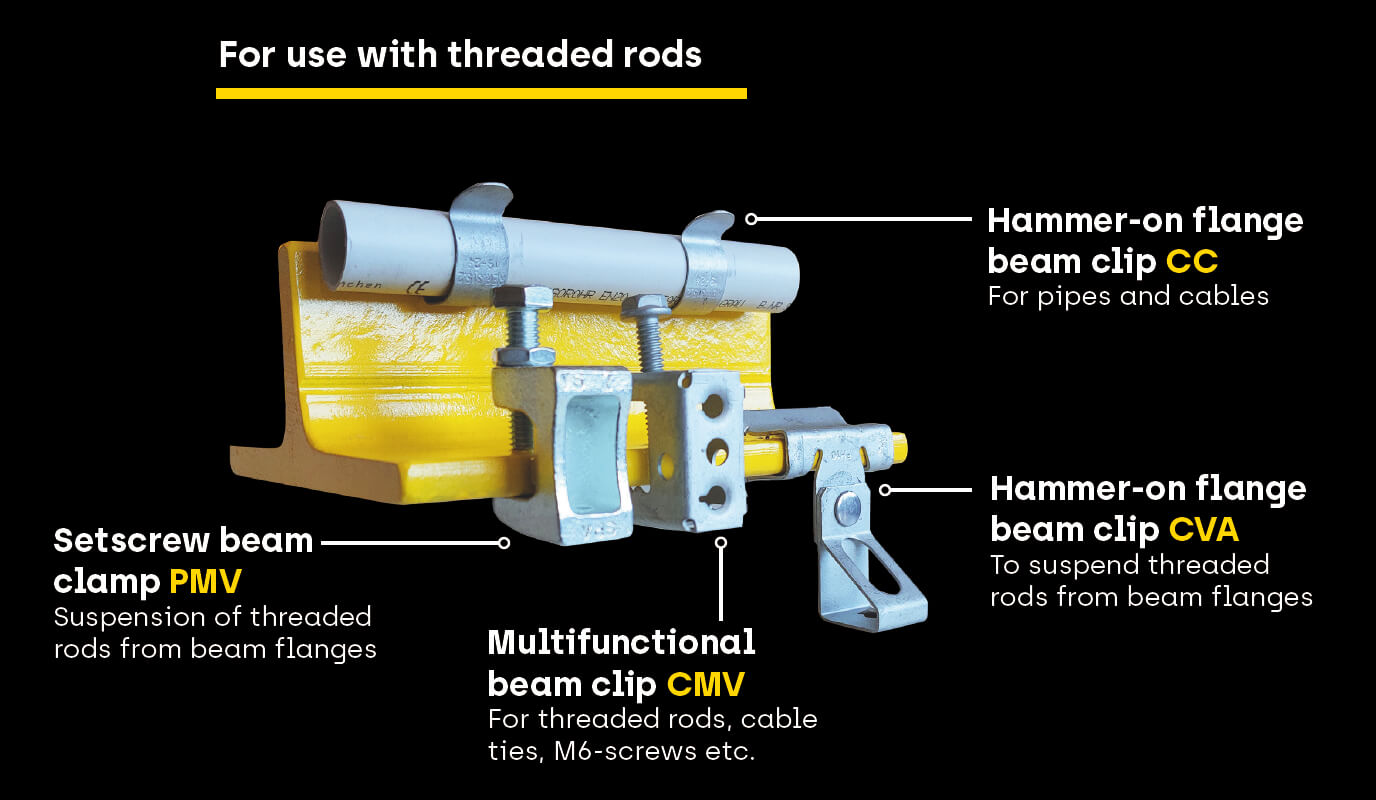

Beam clamps for use with threaded rods or conduits
Setscrew beam clamp PMV
The PMV "Made in Germany" heavy-duty beam clamp has Underwriters Laboratories (UL) certification for safety-relevant products, is FM-approved and fulfils the VdS guidelines. Time-saving: the hexagon head bolt and lock nut can be tightened with the same key.
Setscrew flange beam clip CMV M6
The multifunctional CMV beam clip is ideal for quick and easy installation of threaded rods, M6 parts, clamps and wires thanks to its internal thread and multiple clearance holes. The screw is deliberately angled to achieve greater resistance.
Threaded rod hammer-on flange beam clip CVA
The CVA beam support clip has been specially developed for the quick suspension of M6 and M8 threaded rods - ideal for fastening suspended ceilings and fixing pipe and cable installation.
Cable and pipe hammer-on flange beam clip CC
CC is a stable and time-saving flange beam clip. Empty conduits and cables can simply be clipped in. Discover 21 product variants:

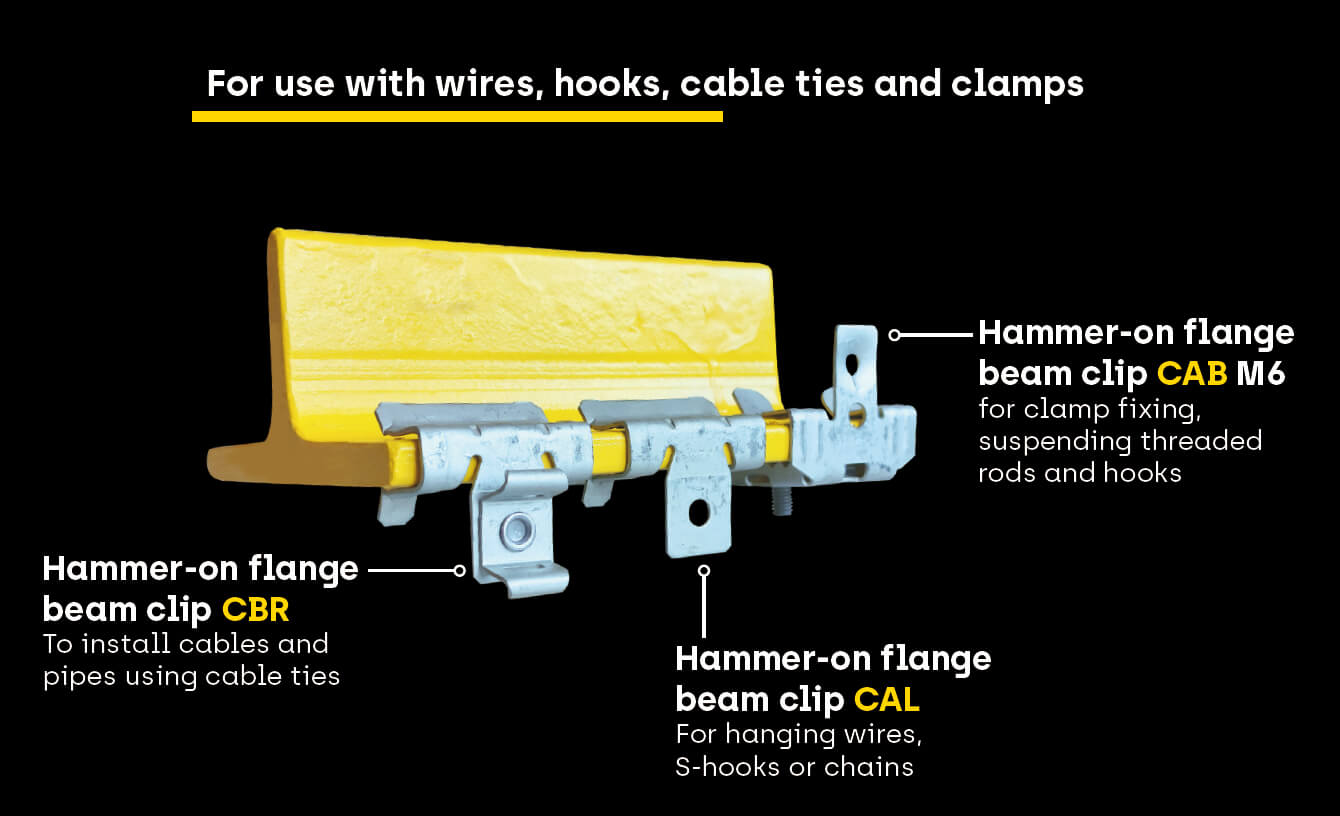

Beam clips for use with ropes, hooks, cable ties, clamps
Cable tie hammer-on flange beam clip CBR
The CBR beam clip is the product of choice for installing cables and pipes with cable ties. The wide range covers most flange widths from 1.5 mm to 20 mm.
Hammer-on flange beam clip CAL
Wires, S-hooks or chains can be passed through the 6.3 mm Ø hole in the CAL beam clamp, offering a variety of applications.
M6 stud Hammer-on flange beam clip CAB
The CAB flange beam clip is simply hammered onto the flange and offers a stable and time-saving solution for suspending connection threads, clamps, or hooks using the pre-mounted M6 screw.
Accessories for beam mounting
Anchor rods, pipe clamps and cable ties complete your beam fixing.
Need further information?
Download the beam fixing leaflet including dimensions and loads.
Do you have any questions about our beam fixings? Don't hesitate to contact us - we'll get back to you as soon as possible!
