Chipboard screw VELOX® SIT/TX blue zinc plated, full thread

High Performance from tip to head
Chipboard screw VELOX® SIT/TX blue zinc plated, full thread
Graphic SIT screw - flush finishing in wood
Graphic SIT screw- flush finishing in metal fittings

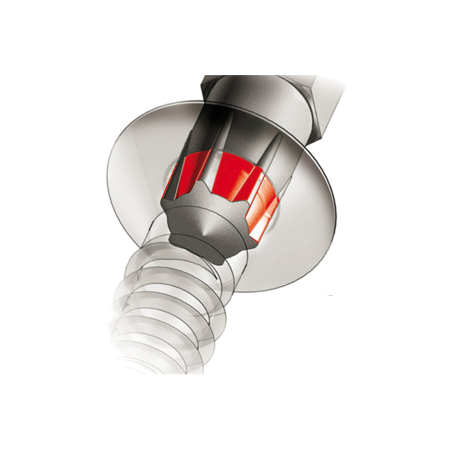

Graphic SIT drive
Product overview

The fast chipboard screw VELOX® SIT/TX made of blue galvanized steel and with full thread is perfectly suitable for mounting wood doors and windows, fittings, chairs or other wood furniture and obtains an ETA assessment ETA-12/0198 for use in timber construction. The SIT recess guarantees a perfect power transfer, fast mounting and a long-lasting SIT bit. Due the conial recess the screw will be centred (no tumbling) and sticks on the bit and improves your working comfort. Alternatively TX bits can also be used (without the mentioned advantages). Your advantage: only one bit size needed for four screw diameters!

Show more
Download documents
List of references
Filters
Screw diameter [mm]
3
3.5
4
4.5
5
6
Close
Screw length [mm]
10
12
13
15
16
17
20
25
30
35
40
45
50
60
70
80
Close
Recess type
SIT/TX 10
SIT/TX 20
SIT/TX 30
Close
Head diameter [mm]
6
7
8
9
10
12
Close
Head height [mm]
1.8
2
2.35
2.55
2.85
3.85
Close
Reference
d
J
9310VLOXS
9312VLOXS
9313VLOXS
9315VLOXS
9316VLOXS
9317VLOXS
9320VLOXS
9325VLOXS
9330VLOXS
9335VLOXS
93512VLOXS
93515VLOXS
93516VLOXS
93517VLOXS
93520VLOXS
93525VLOXS
93530VLOXS
93535VLOXS
93540VLOXS
9412VLOXS
9416VLOXS
9417VLOXS
9420VLOXS
9425VLOXS
9430VLOXS
9435VLOXS
9440VLOXS
9445VLOXS
9450VLOXS
9460VLOXS
94520VLOXS
94525VLOXS
94530VLOXS
94535VLOXS
94540VLOXS
94545VLOXS
94550VLOXS
9520VLOXS
9525VLOXS
9530VLOXS
9535VLOXS
9540VLOXS
9545VLOXS
9550VLOXS
9560VLOXS
9570VLOXS
9580VLOXS
9640VLOXS
9650VLOXS
9660VLOXS
9670VLOXS
9680VLOXS
Diameter [mm]
d
J
3
3
3
3
3
3
3
3
3
3
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
4
4
4
4
4
4
4
4
4
4
4
4.5
4.5
4.5
4.5
4.5
4.5
4.5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
Length [mm]
d
J
10
12
13
15
16
17
20
25
30
35
12
15
16
17
20
25
30
35
40
12
16
17
20
25
30
35
40
45
50
60
20
25
30
35
40
45
50
20
25
30
35
40
45
50
60
70
80
40
50
60
70
80
Screw diameter [mm]
d
J
3
3
3
3
3
3
3
3
3
3
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
3.5
4
4
4
4
4
4
4
4
4
4
4
4.5
4.5
4.5
4.5
4.5
4.5
4.5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
6
Screw length [mm]
d
J
10
12
13
15
16
17
20
25
30
35
12
15
16
17
20
25
30
35
40
12
16
17
20
25
30
35
40
45
50
60
20
25
30
35
40
45
50
20
25
30
35
40
45
50
60
70
80
40
50
60
70
80
Recess type
d
J
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 10
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 20
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
SIT/TX 30
Head diameter [mm]
d
J
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
8
8
9
9
9
9
9
9
9
10
10
10
10
10
10
10
10
10
10
12
12
12
12
12
Head height [mm]
d
J
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
2
2
2
2
2
2
2
2
2
2.35
2.35
2.35
2.35
2.35
2.35
2.35
2.35
2.35
2.35
2.35
2.55
2.55
2.55
2.55
2.55
2.55
2.55
2.85
2.85
2.85
2.85
2.85
2.85
2.85
2.85
2.85
2.85
3.85
3.85
3.85
3.85
3.85
Packaging units
d
J
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
500
500
1000
1000
1000
1000
1000
500
500
500
500
500
250
500
500
500
500
500
250
250
500
500
250
250
250
250
250
250
200
100
250
250
200
100
100
Packaging type.
d
J
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
A
t
52 / 52 references
Applications
  • Wood doors
  • Wood windows
  • Fittings
  • Chairs
  • Wood frames
  • Wood furniture
Base materials
eta
Suitable materials with approvals
Wood
Wood
Other suitable materials
Chipboards
Chipboards
