Universal Spreading Nail USN

Innovative fastening for wall connection profiles - simple and quick

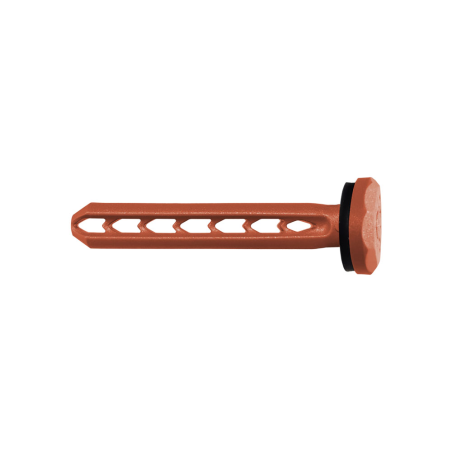

Product image of universal spreading nail USN 6-40 copper brown

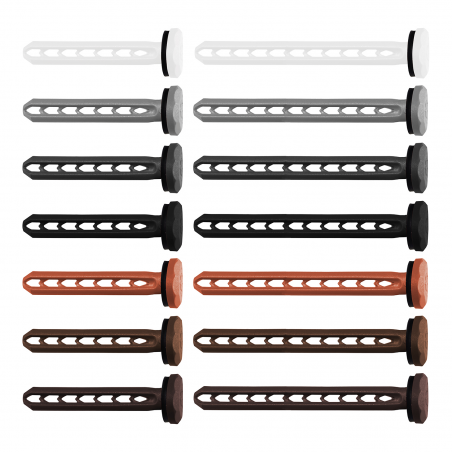

Product image of insulation screw USN all colours
Product image of universal spreading nail USN 6-40 chocolate brown

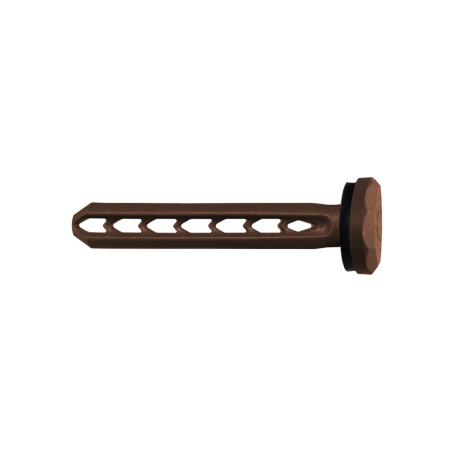

Product image of universal spreading nail USN 6-40 sepia brown

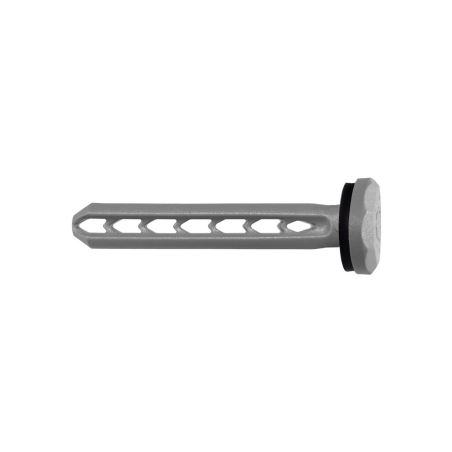

Product image of universal spreading nail USN 6-40 telegrey

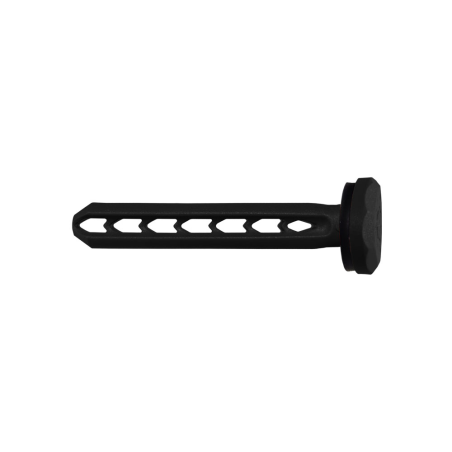

Product image of universal spreading nail USN 6-40 traffic black

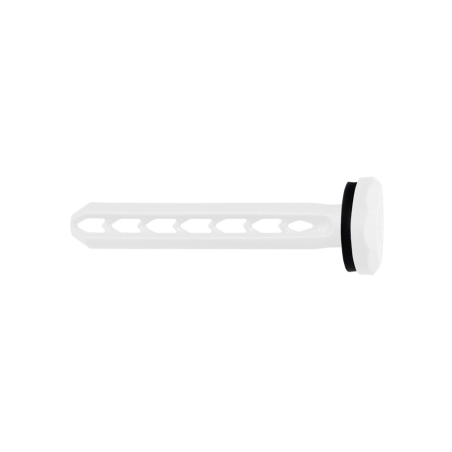

Product image of universal spreading nail USN 6-40 signal white

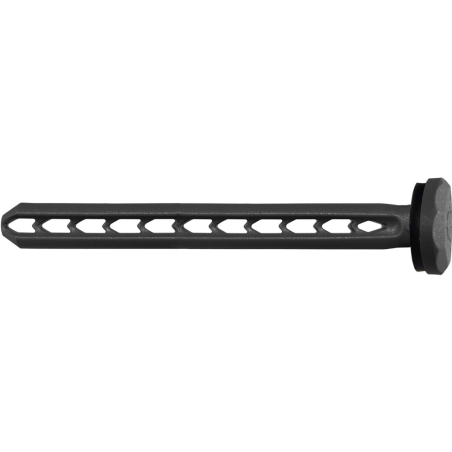

Product image of universal spreading nail USN 6-60 anthracite grey
Product image of universal spreading nail USN 6-60 copper brown
Product image of universal spreading nail USN 6-60 chocolate brown

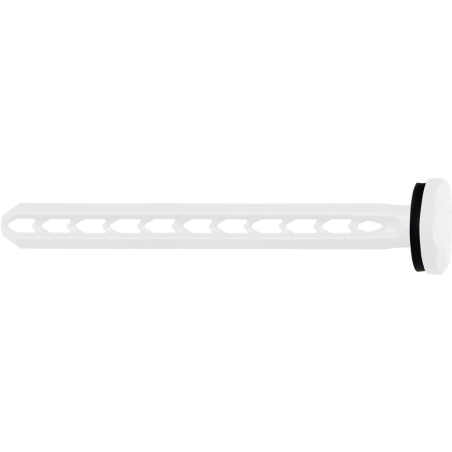

Product image of universal spreading nail USN 6-60 signal white

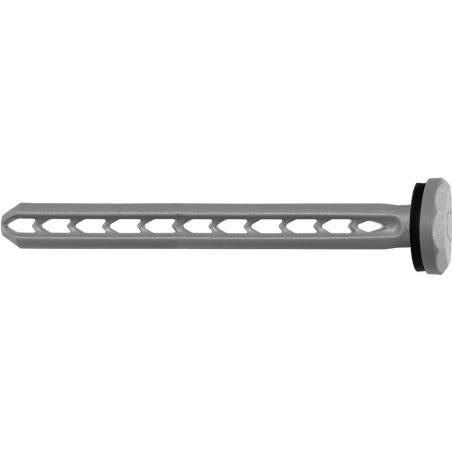

Product image of universal spreading nail USN 6-60 telegrey

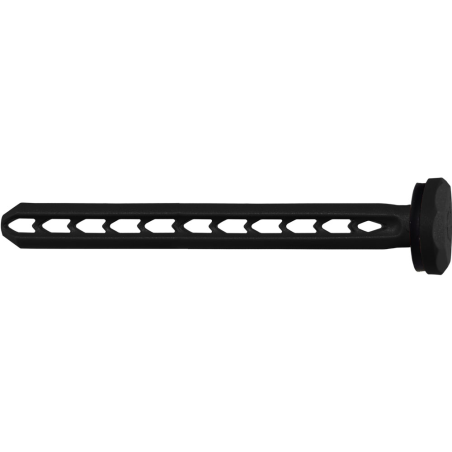

Product image of universal spreading nail USN 6-60 traffic black
Product overview

The innovative universal spreading nail USN is an easy and quick solution for fastening wall connection profiles, thin metal sheets, base protection profiles and cornice covers to external façades. Drill a hole, hammer it in, done!

Show more
Request samples
Download documents
View videos
List of references
Filters
Colour
RAL 9003 - White
RAL 9017 - Traffic black
RAL 7016 - Anthracite
RAL 8004 - Copper brown
RAL 7045 - Telegrey
RAL 8014 - Sepia brown
RAL 8017 - Chocolate brown
Close
Plug length [mm]
40
60
Close
Reference
d
J
9140USN
9440USN
9AN40USN
9CO40USN
9GR40USN
9M40USN
9MO40USN
9160USN
9460USN
9AN60USN
9CO60USN
9GR60USN
9M60USN
9MO60USN
Diameter [mm]
d
J
8
8
8
8
8
8
8
8
8
8
8
8
8
8
Length [mm]
d
J
40
40
40
40
40
40
40
60
60
60
60
60
60
60
Colour
d
J
RAL 9003 - White
RAL 9017 - Traffic black
RAL 7016 - Anthracite
RAL 8004 - Copper brown
RAL 7045 - Telegrey
RAL 8014 - Sepia brown
RAL 8017 - Chocolate brown
RAL 9003 - White
RAL 9017 - Traffic black
RAL 7016 - Anthracite
RAL 8004 - Copper brown
RAL 7045 - Telegrey
RAL 8014 - Sepia brown
RAL 8017 - Chocolate brown
Drill hole diameter [mm]
d
J
6
6
6
6
6
6
6
6
6
6
6
6
6
6
Plug length [mm]
d
J
40
40
40
40
40
40
40
60
60
60
60
60
60
60
Drill hole depth [mm]
d
J
40
40
40
40
40
40
40
40
40
40
40
40
40
40
Head diameter [mm]
d
J
15
15
15
15
15
15
-
15
15
15
15
15
15
15
Packaging units
d
J
100
100
100
100
100
100
100
75
75
75
75
75
75
75
Packaging type.
d
J
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
Box
A
t
14 / 14 references
Applications
  • Wall connection profiles
  • Base protection profiles
  • Cornice covers
  • Lighting
  • Motion sensor/detector
  • Signs
Further specifications

Key features:

  • Innovative direct fastening of wall connection profiles, metal sheets, base protection profiles, cornice covers, motion detectors, small lamps, signs, etc. without thermal bridge
  • Suitable in almost all common building materials with good pull-out values
  • The elastic V-shaped spring elements ensures a high spreading force
  • Made with fiberglass reinforced nylon, incorporates EPDM rubber weather, aging and UV resistant
  • Stylish flat head in different colors
  • Electrical contact protection through the use of plastics
  • Easy disassembly by knocking off or drilling out the head
Base materials
Suitable materials
Concrete
Concrete
Natural stone
Natural stone
Solid brick
Solid brick
Solid sand-lime brick
Solid sand-lime brick
Lightweight solid concrete block
Lightweight solid concrete block
Hollow brick
Hollow brick
Hollow sand-lime block
Hollow sand-lime block
Lightweight hollow concrete block
Lightweight hollow concrete block
Aerated concrete (only AAC 6)
Aerated concrete (only AAC 6)
Other related products
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
Watch the video
