Blister cavity plug universal BT plus with screw

Specialised cavity plug - universal, quick and easy
Product image of blister cavity fixing universal BT plus

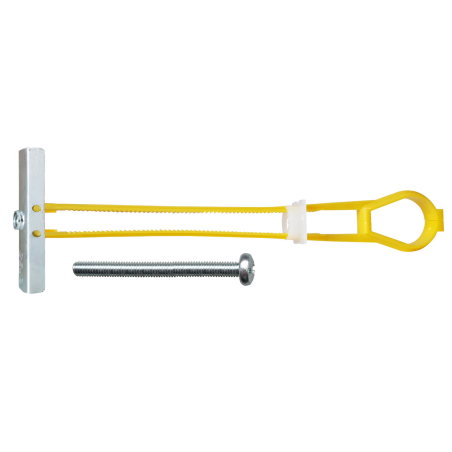

Product image of cavity plug universal BT Plus with metric pan head screw

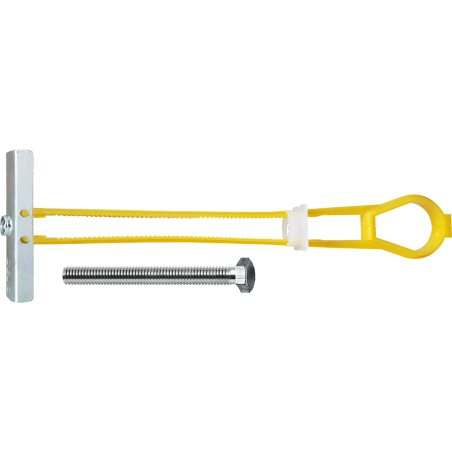

Product image of cavity plug universal BT Plus with hex-head wood screw
Product overview

The cavity plug universal BT plus with screw achieves the highest loads in plasterboards. At the same time the BT is universally useable for board thicknesses from 10 to 70 mm. No additional setting tool needed.

Show more
Download documents
View videos
List of references
Filters
Screw length [mm]
50
60
Close
Drill hole diameter [mm]
13
18
Close
Thread
M4
M5
M6
M8
Close
Panel thickness [mm]
hp+tfix = 10 - 40
hp+tfix = 10 - 52
hp+tfix = 10 - 48
Close
Recess type
Slotted+PZ2
PZ3
Close
Reference
d
J
54BTLO4
55BTLO4
56BTLO4
58BTK2
Diameter [mm]
d
J
4
5
6
8
Length [mm]
d
J
1
1
1
1
Screw length [mm]
d
J
50
60
60
60
Drill hole diameter [mm]
d
J
13
13
13
18
Thread
d
J
M4
M5
M6
M8
Panel thickness [mm]
d
J
hp+tfix = 10 - 40
hp+tfix = 10 - 52
hp+tfix = 10 - 52
hp+tfix = 10 - 48
Recess type
d
J
Slotted+PZ2
Slotted+PZ2
Slotted+PZ2
PZ3
Packaging units
d
J
4
4
4
2
Packaging type.
d
J
Blister
Blister
Blister
Blister
A
t
4 / 4 references
Applications
  • Radiators
  • Paintings
  • Lighting
  • Shelves
  • Kitchen cupboard
  • Sliding door profiles
Base materials
  • Fibreboards
  • Chipboards
  • Hollow brick
  • Cavity ceilings
Other related products
How to install
Step 1
Step 2
Step 3
Step 4
Step 5
Watch the video
