Blister Internal threaded sleeve IGH

Internal threaded sleeve for ResiFIX
Product image of blister metal sleeve IGH

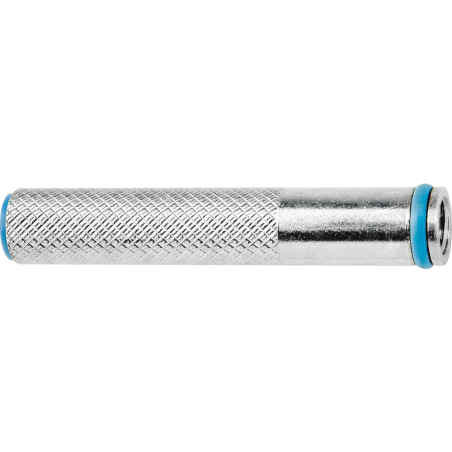

Product image of internal threaded sleeve IGH
Product overview

The internal threaded sleeve IGH in the handy blister is the optimal complement to the plastic sleeve SH - for heavy-duty installations in perforated bricks.

Show more
Download documents
List of references
Filters
Drill hole diameter [mm]
14
16
Close
Outer diameter [mm]
12
14
Close
Thread
M8
M10
Close
Suitable for
Sleeve SH 15-100 and SH 20-85
Sleeve SH 20-85
Close
Reference
d
J
5880IGHM4
51080IGHM4
Drill hole diameter [mm]
d
J
14
16
Anchorage depth [mm]
d
J
90
90
Thread length [mm]
d
J
26
26
Outer diameter [mm]
d
J
12
14
Thread
d
J
M8
M10
Plug length [mm]
d
J
80
80
Suitable for
d
J
Sleeve SH 15-100 and SH 20-85
Sleeve SH 20-85
Packaging units
d
J
4
4
Packaging type.
d
J
Blister
Blister
A
t
2 / 2 references
Applications
  • Steel constructions
  • Cantilevers
  • Facade substructures
  • Machines
  • Guard rails
  • Canopies
  • Distance mountings
  • Window and door frame fixings
  • Wood constructions
Base materials
Suitable materials
Hollow brick
Hollow brick
Hollow sand-lime block
Hollow sand-lime block
Lightweight hollow concrete block
Lightweight hollow concrete block
